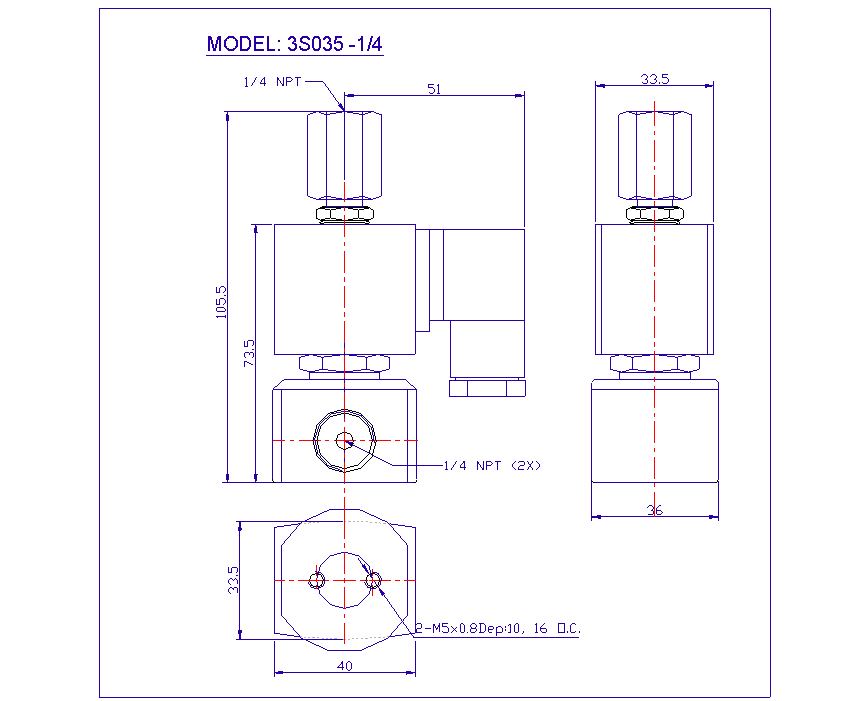

Stainless Steel Solenoid Valve Specifications: 3S020-035 Series

Valve Model

3S020

3S035

Valve Type

3 Way Normally Closed (NC) or Normally Open (NO)

Action

Direct Acting

Cv (Orifice)

0.14 (2mm NC Port, 2mm NO Port)

0.5 (3.5mm NC Port, 2.5mm NO Port)

Operating Pressure (PSI)

Vacuum to 100 PSI

Vacuum to 60 PSI

Operating Temperature (°C)

-10 to 120°C

Port Size (NPT)

1/4

Body Materials

Stainless Steel

Seal Materials:

Viton (Options: EPDM, NBR)

Coil Protection Insulation Class

H Class IP65

Coil Duty

100% ED

Coil Power

18W

Electrical Connections

DIN

Service

Air, Liquid, Vacuum

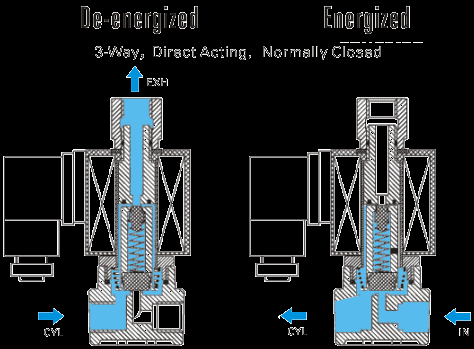

2/3 Direct Acting Solenoid Valve Normally Closed (3S035 Series)

As shown below, when the valve is de-energized (left diagram), the plunger under the force of spring seals the main orifice, and port CYL connects with port EX. When the valve is energized (right diagram), the coil magnetic force pulls back the plunger and closes port EX, and connects port IN to CYL.






Electrical Coil Connections

For DIN Coil

To connect DIN coil:
1. Remove the Philip screw from the plastic housing and unplug it from the DIN coil.
2. From the screw opening, push the terminal block out from the plastic housing.
3. Note the 1, 2 and ground markings on underside of DIN enclosure.
4. For DC DIN Coil, Connect 1 to Positive, 2 to Negative.
5. For AC DIN Coil, connect 1 to HOT wire, 2 to Neutral wire, and if required connect ground to ground wire.

For Grommet Coil

To connect Grommet coil:
1.  For DC Coil, connect one of the two wires to Positive, and the other wire to Negative.
2. For AC Coil, connect one of the two wires to HOT wire, and the other wire to neutral wire.
