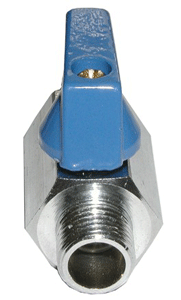

Miniature Chrome-Plated Brass Ball Valves


Model: T400



Model: T400  SPECIFICATIONS

Reduced Port

Maximum Operating Pressure:
1/4” to 1/2” 450 PSIG @ 75ºF WOG*

Temperature  Range: -0 to 200 ºF*

End Connections: NPT Threaded (Female)
Stem is blowout-proof

Chrome-plated brass body, brass stem, chrome-plated ball, seats and seal are Teflon, handle is made of  die-cast metal

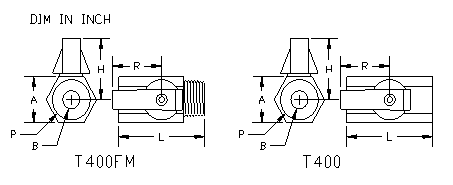

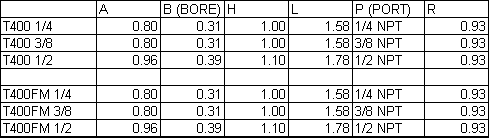

Unit = inch
