Brass Ball Valves

Model: T101L

3 Way Ball Valve
Model: T103L

Model: T101L  SPECIFICATIONS

Two Piece Full Port Brass Ball Valve

UL Listed

Maximum Operating Pressure:
1/4” to 2” 600 PSIG @ 100ºF WOG*

Temperature  Range: -50 to 400 ºF*

End Connections: NPT Threaded (Female)
Stem is blowout-proof

Brass body, brass stem, chrome-plated ball, seats and seal are Teflon, handle is made of steel with vinyl covering

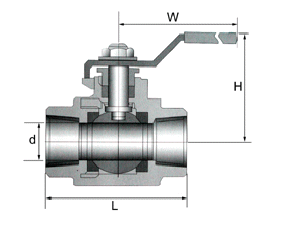

   DIMENSIONS (mm)

SIZE
1/4
3/8
1/2
3/4
1
1 1/4
1 1/2
2
2 1/2
3
d
11.6
12.7
15
20
25.4
32
38
50.8
65
76
L
40
52
57
61
88
103
110
124
167
192
H
34
48
50
55
69
73
83
92
136
149
W
66
80
85
96
145
145
190
190
250
250
