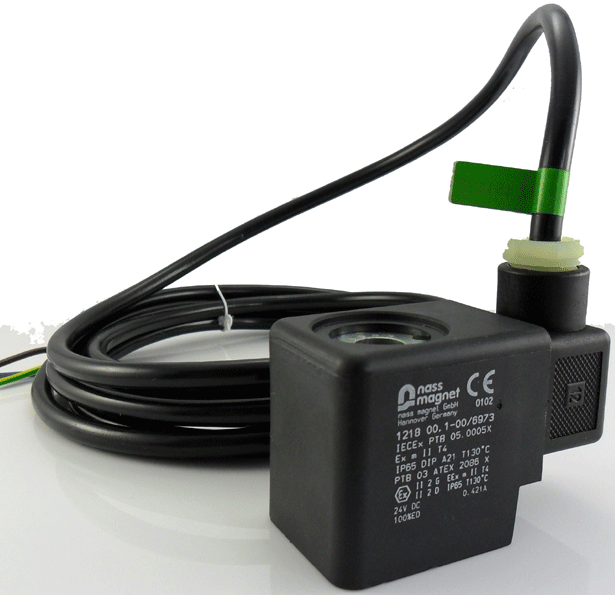

Explosion Proof Solenoid Valve Coil
|
200C-1-E
|
Explosion Proof Coil for
Model: 2P025, 2V025-035, 2S025, 2V130-250,
3V110-410, 4V110-410
(VALVE BODY NOT INCLUDED) |
12VDC |
All voltages with
1/2" NPT conduit
connection
FM Approved
CL. I; ZONE 1,
CL. I; DIV.1; GR. A, B, C, D
CL. II; GR. E, F, G
CL. III
T4 Ta= -20ēC...+60ēC
 |
|
200C-2-E
|
24VDC |
|
200C-2A-E
|
24VAC
(50/60HZ) |
|
200C-3-E
|
110VAC
(50/60HZ) |
|
200C-4-E
|
220VAC
(50/60HZ) |
|
2W200C-1-E
|
0
Explosion Proof Coil
for
Model:
2S020-500, 2W025-500, 2MS120-500
(VALVE BODY NOT INCLUDED)
|
12VDC |
CE Approved
ICEx PTB 05.0005XIP 65
Ex m II T4
IP65 DIP A21 T130ēC
PTB 03 ATEX 2086 X
II 2 G Ex mb II T4
II 2 D Ex tD
A21 T130ēC
All COILS comes with 10 FT 3 CONDUCTORS CABLE
|
|
2W200C-2-E
|
24VDC |
|
2W200C-2A-E
|
24VAC |
|
2W200C-3-E
|
110VAC(50/60Hz) |
|
2W200C-4-E
|
220VAC (50/60Hz) |
|
