Needle Valve - STC stainless steel, high pressure needle valves

Model: VN01  SPECIFICATIONS

End Connections: NPT threaded,  ASME b1.20.1

DIN 2999 & BS21; ISO 228/1 & ISO 7/1

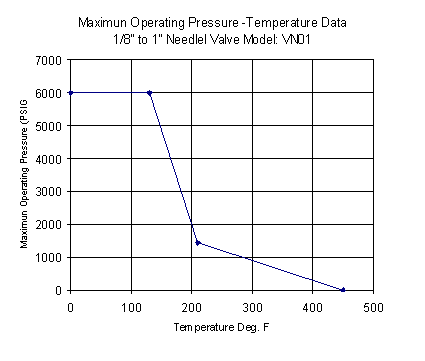

Max. Operating Pressure: 6000 PSIG (413 bar) @ 100 ºF*

Operating Temperature Range: -60 to 450ºF*

 Panel Mount

 Fire safe design
Non-rotating, hardened needle design for leak-tight shutoff and long service life

Model: VN01

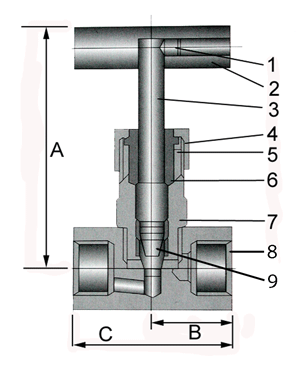

DIMENSIONS (mm)

SIZE

A

B C Cv Orifice

1/8"

75

25

50

0.43

5

1/4"

75

25

50

0.43

5

3/8"

75

25

50

0.74

6

1/2" 87 30 60 1.36 6
3/4" 90 32.5 65 2.64 7
1" 10. 40 80 3.6 8

MAIN PARTS AND MATERIALS

NO

PART NAME

MATERIAL

1

SET SCREW

SS304

2

HANDLE

SS304

3

STEM

SS316

4

GLAND NUT

SS304

5

GLAND

SS304

6

PACKING

TEFLON

7

BONNET

SS316

8

BODY

SS316

9 Needle SS316 (Hardened,
Non-rotating)
Needle Valve
