Normally Open Solenoid Valve Specifications and Dimensions: 2SO040 Series
|
Valve Model |
2SO040 |
|
Valve Type
|
2 Way Normally
Open (NO) |
|
Action |
Direct Acting |
|
Cv (Orifice) |
|
|
Operating
Pressure |
Vacuum to 60 PSI; (Option: Vacuum to
100 PSI |
|
Operating
Temperature |
Standard: NBR
Seal: -10 to 80°C; Option: Viton Seal: -15 to 120°C
|
|
Port Size (NPT) |
|
|
Body Materials |
Stainless Steel |
|
Seal Materials:
|
NBR (Options:
Viton
) |
|
Coil Protection
Insulation Class |
H Class IP65
|
|
Coil Duty
|
100% ED
|
|
Coil Power
|
28W |
|
Electrical
Connections |
DIN |
|
Service |
Air, Gas,
Liquid, Vacuum Steam (with Viton Seal) |
|
ALL Standard valves are supplied with CONTINUOUS DUTY COILS
of the proper class of insulation for the service indicated on the valve.
The coil temperature may become hot after being energized for extended
periods, but it is normal. Smoke or burning odor indicates excessive coil
temperature and should disconnect the power to the coil immediately.
VOLTAGES: Standard: 12-24V DC and 24-110-220-230V/50-60 Hz AC. Voltage
tolerances: +10% –5% for DC, +10%-15% for AC; .
SERVICE LIFE: The service life of the solenoid valve depends on the
operating conditions such as pressure, temperature, type of medium and the
voltage. Normally the STC solenoid valves are reliable for more than 5
million cycles. |
|
2/2 Direct
Acting Normally Open (2SO040 Series)
To close: when the valve is energized, it attracts the plunger. Then the
plunger covers the main orifice which stops media flow through the valve.
To open: when the valve is de-energized, it releases its hold on the
plunger. Then the plunger uncovers the main orifice which allows the flow
through the valve.
 .
 |
|
|
|

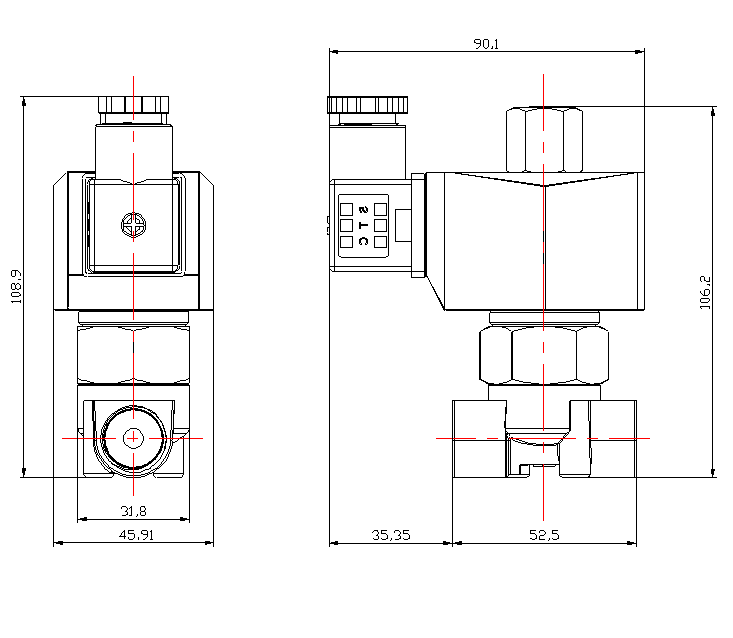

Model: 2SO040-3/8 (Unit=mm)
|
|
Electrical Coil Connections |
|
For DIN Coil |
To connect DIN coil:
1. Remove the Philip screw from the plastic housing and unplug it from the
DIN coil.
2. From the screw opening, push the terminal block out from the plastic
housing.
3. Note the 1, 2 and ground markings on underside of DIN enclosure.
4. For DC DIN Coil, Connect 1 to Positive, 2 to Negative.
5. For AC DIN Coil, connect 1 to HOT wire, 2 to Neutral wire, and if
required connect ground to ground wire. |
|
For Grommet Coil |
To connect Grommet coil:
1. For DC Coil, connect one of the two wires to Positive, and the
other wire to Negative.
2. For AC Coil, connect one of the two wires to HOT wire, and the other wire
to neutral wire. |
|
CAUTION: Do not energize the
solenoid coil when it is not installed onto the valve. It may cause it to
overheat and create a fire hazard. |
| |
|
