                                      A Series Aluminum Body Filter-Regulator-Lubricators Specifications
                                                          Click on a picture to zoom to the product's information

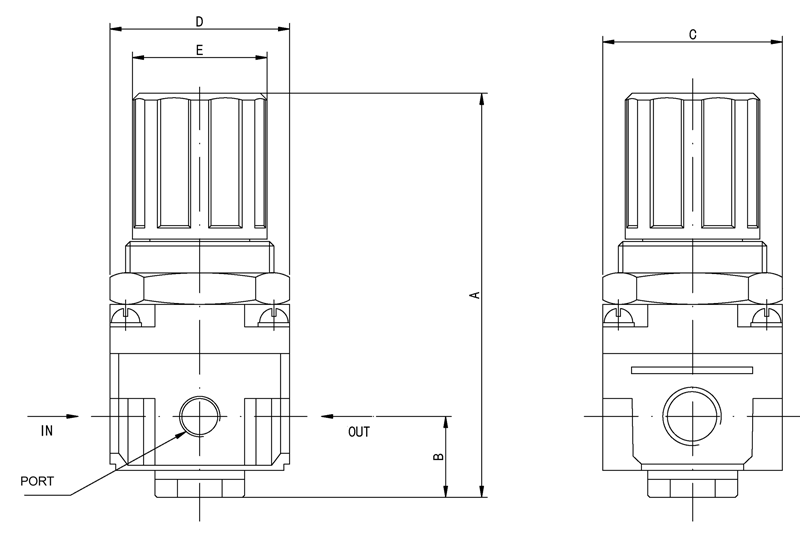

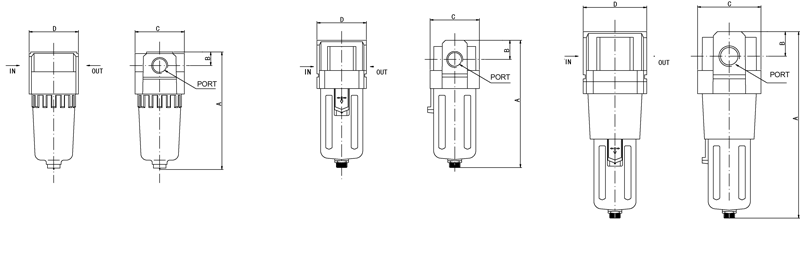

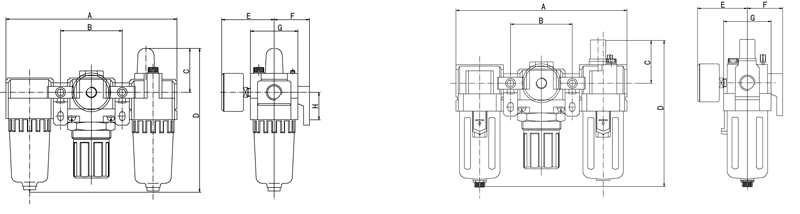

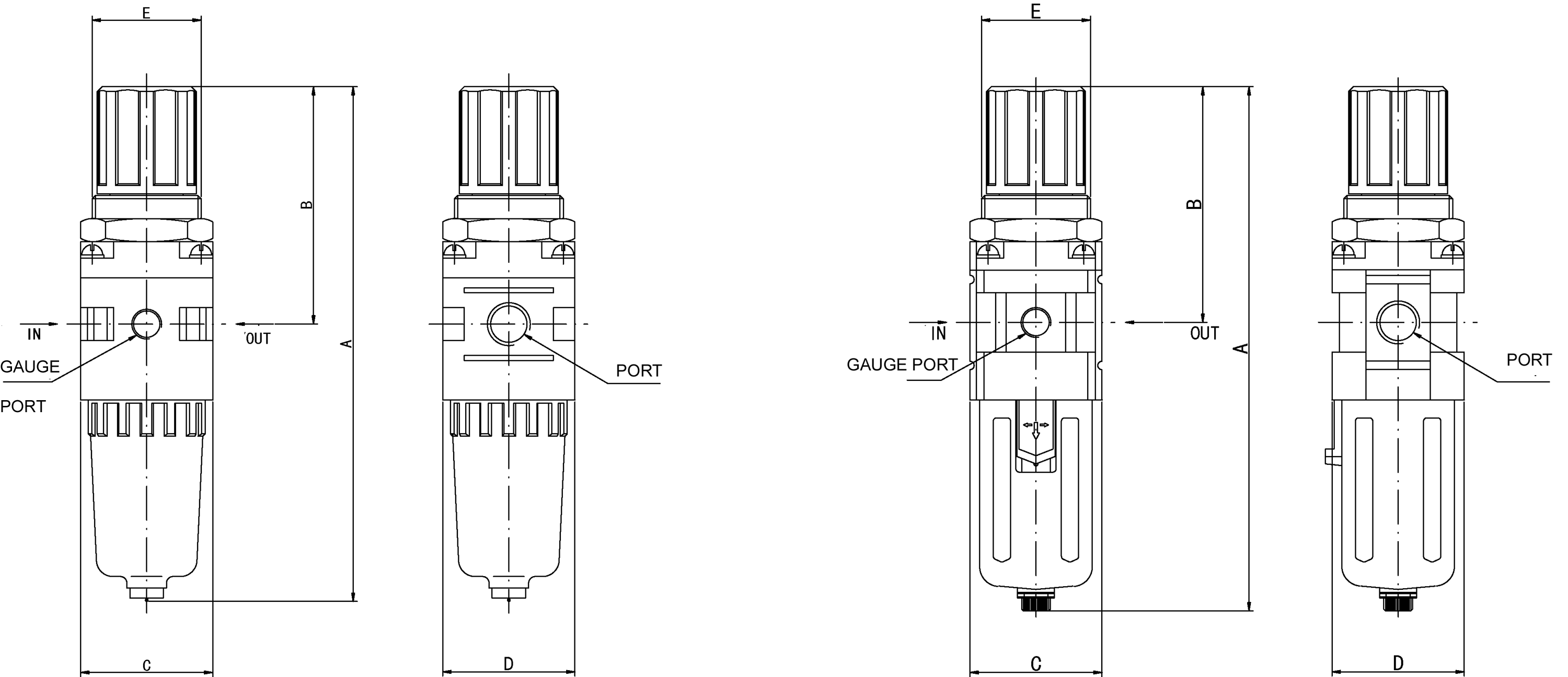

Click Picture for Dimensions
Click Picture for

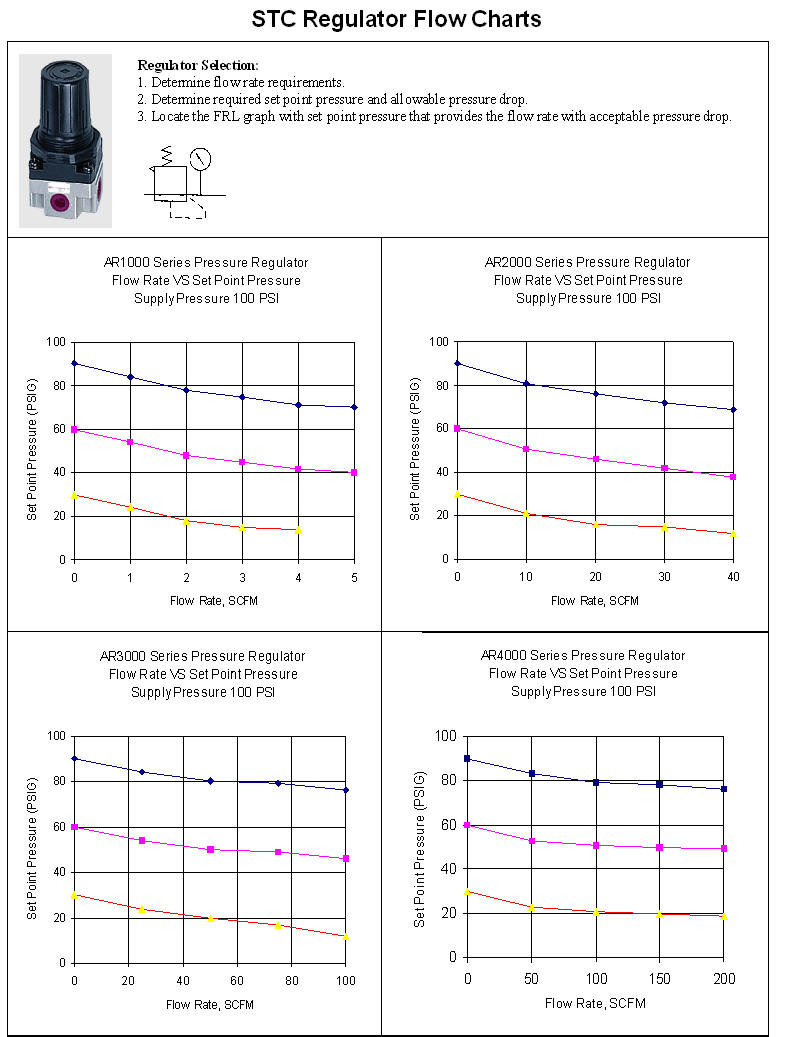

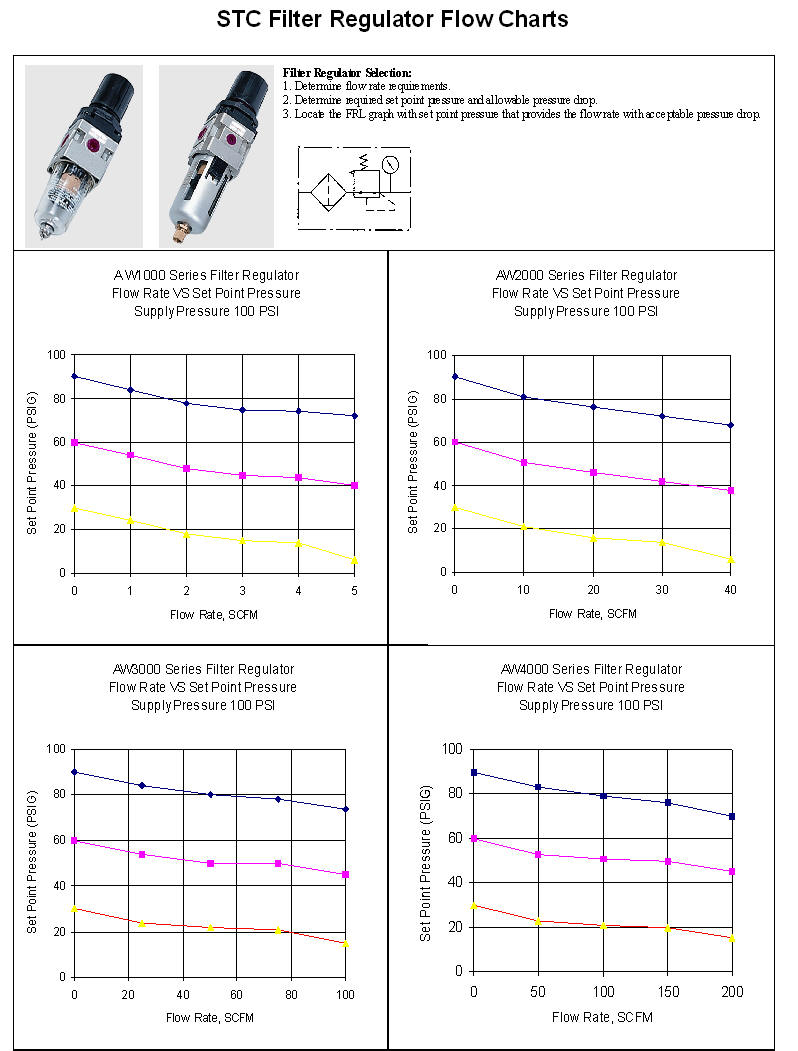

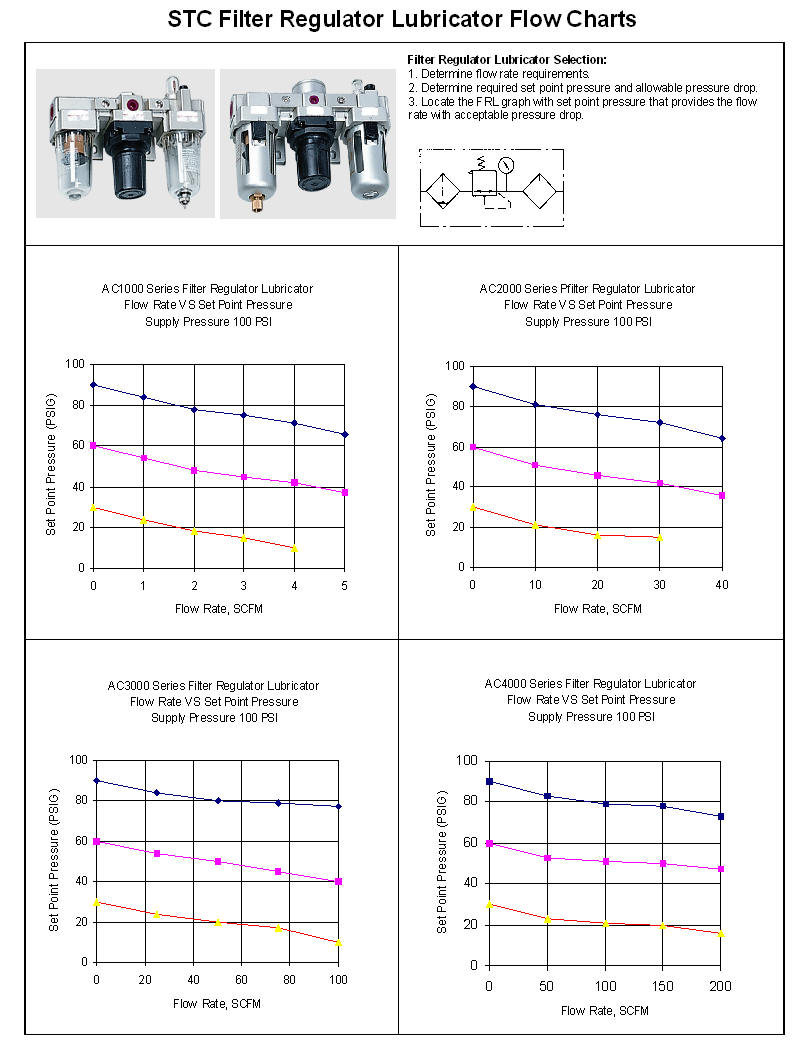

Flow Rates
Model

AC1000-5000-XX

AC1010-5010-XX

AW1000-5000-XX

AR1000-5000-XX

AF1000-5000-XX

AL1000-5000-XX


 Numbering System: MODEL - BODY SIZE - PORT SIZE - OPTIONS
MODEL

BODY SIZE

PORT SIZE

Standard Features

Options

AC

AW

AR

AF

AL

1000

00=10-32 (M5)
01=1/8 NPT
02=1/4 NPT
03=3/8 NPT
04=1/2 NPT
06=3/4 NPT
10=1 NPT

125 PSI Regulating Range

Polycarbonate Bowl

Semi-Auto Differential Drain

F25=25 Micron Filter (Sintered Brass)

Relieving Type



D=Automatic Drain (For 2000 TO 5000 Series Filter)

M=Aluminum Metal

P30=30PSI Regulating Range

P60=60 PSI Regulating Range

5 Micron Filter

2000
2500
3000
4000

5000

AC

1010

2010
3010
4010

5010

Specifications:
A Series FRL Interchangeable with SMC - NAC SERIES FRL

These FRL components are of Modular design with joiner clamps and allow you to easily connect and disconnect FRL components for simple installation and maintenance.

Regulator-Filter-Lubricator

AC1000-XX

AC2000-XX

AC3000-XX

AC4000-XX

AC4000-06

AC5000-XX

Flow Rate* SCFM (LPM)

3 (90)

18 (500)

70 (2000)

140 (4000)

160 (4500)

180 (5000)

Stacking Regulator-Filter-Lubricator

AC1010-XX

AC2010-XX

AC3010-XX

AC4010-XX

AC4010-06

AC5010-XX

Flow Rate* SCFM (LPM)

3 (90)

18 (500)

60 (1700)

105 (3000)

105 (3000)

140 (4000)

Stacking Regulator-Filter

AW1000-XX

AW2000-XX

AW3000-XX

AW4000-XX

AW4000-06

AW5000-XX

Flow Rate* SCFM (LPM)

3 (90)

19 (550)

70 (2000)

140 (4000)

160 (4500)

195 (5500)

Regulator

AR1000-XX

AR2000-XX

AR3000-XX

AR4000-XX

AR4000-06

AR5000-XX

Flow Rate* SCFM (LPM)

4 (100)

19 (550)

88 (2500)

210 (6000)

210 (6000)

280 (8000)

Filter

AF1000-XX

AF2000-XX

AF3000-XX

AF4000-XX

AF4000-06

AF5000-XX

Flow Rate* SCFM (LPM)

4 (110)

26 (750)

70 (2000)

140 (4000)

210 (6000)

245 (7000)

Lubricator

AL1000-XX

AL2000-XX

AL3000-XX

AL4000-XX

AL4000-06

AL5000-XX

Flow Rate* SCFM (LPM)

3 (90)

28 (800)

60 (1700)

180 (5000)

220 (6300)

245 (7000)

Port Size

10-32 (M5)

1/8 or 1/4 NPT

1/4 or 3/8 NPT

3/8 or 1/2 NPT

3/4 NPT

3/4 or 1 NPT

Port Size (Pressure Gauge)

1/16 RC (PT)

1/8 NPT

1/8 NPT

1/4 NPT

1/4 NPT

1/4 NPT

Regulating Range

7-100 PSI

7-125 PSI (0.5-8.5 kgf/cm2)

Max. Operating Pressure

150 PSI (9.9 kgf/cm2)

Operating Temperature

40-140°F (5-60°C)

Filtration

5 micron filter (standard);    25 Micron (Sintered Brass Filter)

Bowl Material

Polycarbonate (standard) or Aluminum Metal

Bowl Guard

N/A

Steel Bowl Guard

Body Material

Die-Casting Aluminum

Construction/Regulator

Relieving Type

Filter Drain

Semi-Auto Differential Drain

Semi-Auto Differential Drain (Standard) or Automatic Drain

*Measured with Supply Pressure @100 PSI and Set Point Pressure @75 PSI

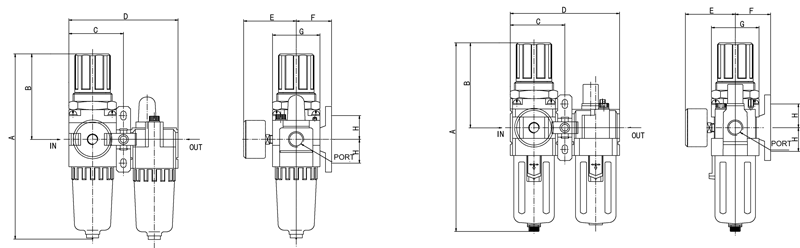

Top of Page                          A Series Filter Regulator Lubricator Dimensions

Model

Flow Rate
(lpm/scfm)

Port

Gauge Port

A
(mm/in)

B

(mm/in)

C

(mm/in)

D

(mm/in)

E

(mm/in)

F

(mm/in)

G

(mm/in)

H

(mm/in)

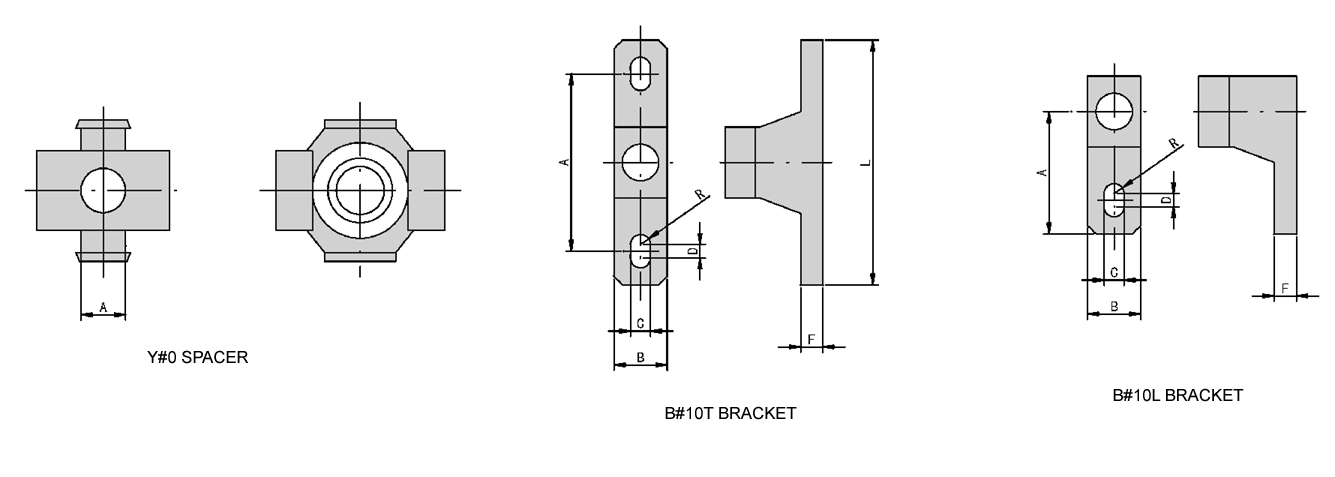

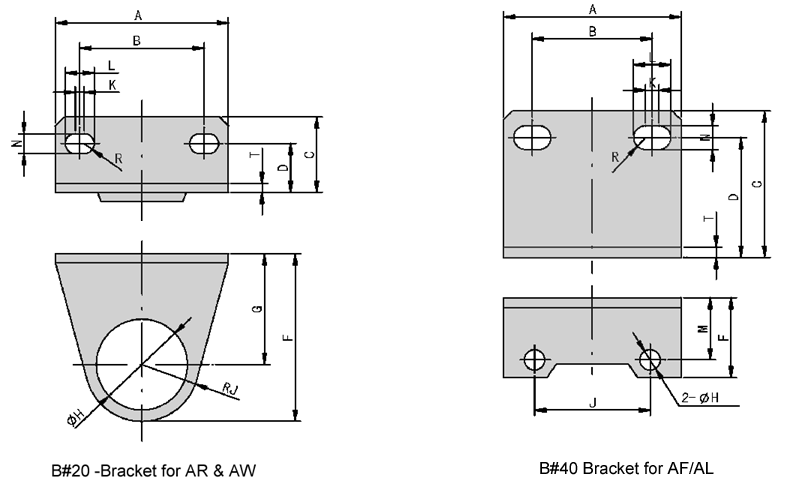

Bracket

Weight
(kg/lb)

Gauge

AC1000 –00

90

10-32 (M5)

1/16 Rc

91

33

25.5

84.5

26

25

25

20

Y10L

0.26

GE-1-160-00

3

3.58

1.30

1.00

3.33

1.02

0.98

0.98

0.79

0.57

AC2000 –01

500

1/8 NPT

1/8 NPT

140

50

38

125

56.8

30

40

24

Y20L

0.74

GE-1 1/2-160-01

AC2000 –02

18

1/4 NPT

5.51

1.97

1.50

4.92

2.24

1.18

1.57

0.94

1.63

AC3000 –02

2000

1/4 NPT

1/8 NPT

181

64

38

156.5

60.8

41

53

35

Y30L

1.18

AC3000 –03

70

3/8 NPT

7.13

2.52

1.50

6.16

2.39

1.61

2.09

1.38

2.60

AC4000 –03

4000

3/8 NPT

1/4 NPT

238

84

41

191.5

65.5

50

70

40

Y40L

2.14

GE-2-160-02

AC4000 –04

140

1/2 NPT

9.37

3.31

1.61

7.54

2.58

1.97

2.76

1.57

4.71

AC4000 -06

4500

3/4 NPT

1/4 NPT

253

89

41

193

69.5

50

70

40

Y50L

2.47

160

9.96

3.50

1.61

7.60

2.74

1.97

2.76

1.57

5.43

AC5000 –06

5000

3/4 NPT

1/4 NPT

300

105

48

271.5

75.5

69.8

90

50

Y60L

3.82

AC5000 –10

180

1 NPT

11.81

4.13

1.89

10.69

2.97

2.75

3.54

1.97

8.40


  Top of Page                             A Series Stacking Filter Regulator Lubricator Dimensions

Model

Flow Rate
(lpm/scfm)

Port

Gauge Port

A
(mm/in)

B

(mm/in)

C

(mm/in)

D

(mm/in)

E

(mm/in)

F

(mm/in)

G

(mm/in)

H

(mm/in)

Bracket

Weight

(kg/lb)

Gauge

AC1010 –00

90

10-32 (M5)

1/16 Rc

109.5

50.5

29

58

26

25

25

20

Y10T

0.22

GE-1-160-00

3

4.31

1.99

1.14

2.28

1.02

0.98

0.98

0.79

0.48

AC2010 –01

500

1/8 NPT

1/8 NPT

164.5

78

45

90

56.8

30

40

24

Y20T

0.66

GE-1 1/2-160-01

AC2010 –02

18

1/4 NPT

6.48

3.07

1.77

3.54

2.24

1.18

1.57

0.94

1.45

AC3010 –02

1700

1/4 NPT

1/8 NPT

211

92.5

58.5

117

60.8

41

53

35

Y30T

0.98

AC3010 –03

60

3/8 NPT

8.31

3.64

2.30

4.61

2.39

1.61

2.09

1.38

2.16

AC4010 –03

3000

3/8 NPT

1/4 NPT

262

112

77

154

65.5

50

70

40

Y40T

1.93

GE-2-160-02

AC4010 –04

105

1/2 NPT

10.31

4.41

3.03

6.06

2.58

1.97

2.76

1.57

4.25

AC4010-06

3000

3/4 NPT

1/4 NPT

267

114

82

164

69.5

50

70

40

Y50T

1.99

105

10.51

4.49

3.23

6.46

2.74

1.97

2.76

1.57

4.38

AC5010 –06

4000

3/4 NPT

1/4 NPT

338

116

97.5

195

75.5

69.8

90

50

Y60T

3.2

AC5010 –10

140

1 NPT

13.31

4.57

3.84

7.68

2.97

2.75

3.54

1.97

7.04


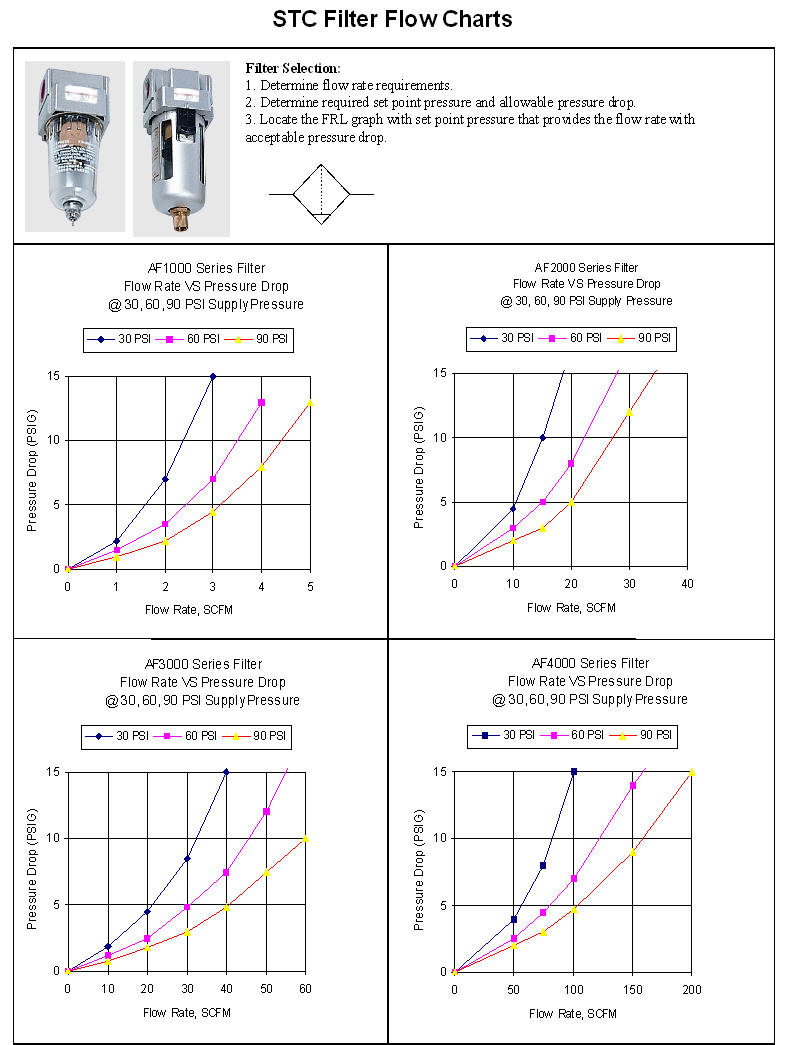

Top of Page                                               A Series Filter Dimensions

Model

Flow Rate
(lpm/scfm)

Port

A
(mm/in)

B

(mm/in)

C

(mm/in)

D

(mm/in)

Bracket

Weight

(kg/lb)

AF1000-00

110

10-32 (M5)

66

7

25

B140

0.07

4

2.60

0.28

0.98

0.00

0.15

AF2000-01

750

1/8 NPT

97.5

11

40

40

B240

0.19

AF2000-02

26

1/4 NPT

3.84

0.43

1.57

1.57

0.42

AF3000-02

2000

1/4 NPT

132.5

14

53

53

B340

0.29

AF3000-03

70

3/8 NPT

5.22

0.55

2.09

2.09

0.64

AF4000-03

4000

3/8 NPT

168.5

18

70

70

B440

0.55

AF4000-04

140

1/2 NPT

6.63

0.71

2.76

2.76

1.21

AF4000-06

6000

3/4 NPT

172.5

20

70

70

B540

0.58

210

6.79

0.79

2.76

2.76

1.28

AF5000-06

7000

3/4 NPT

247.5

24

90

90

B640

1.08

AF5000-10

245

1 NPT

9.74

0.94

3.54

3.54

2.38

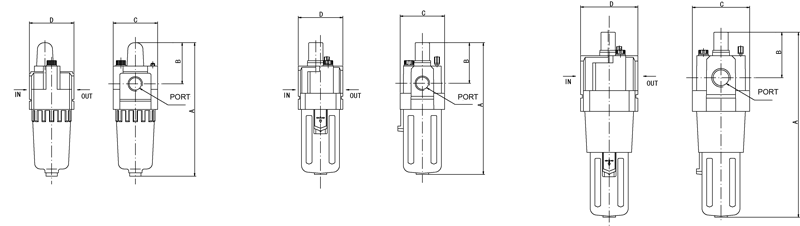

Top of Page                                          A Series Lubricator Dimensions

Model

Flow Rate
(lpm/scfm)

Port

A
(mm/in)

B

(mm/in)

C

(mm/in)

D

(mm/in)

Bracket

Weight

(kg/lb)

AL1000-00

95

10-32 (M5)

81.5

25.5

25

B140

0.07

3

3.21

1.00

0.98

0.15

AL2000-01

800

1/8 NPT

122

38

40

40

B240

0.22

AL2000-02

28

1/4 NPT

4.80

1.50

1.57

1.57

0.48

AL3000-02

1700

1/4 NPT

142

38

53

53

B340

0.3

AL3000-03

60

3/8 NPT

5.59

1.50

2.09

2.09

0.66

AL4000-03

5000

3/8 NPT

177

41

70

70

B440

0.56

AL4000-04

180

1/2 NPT

6.97

1.61

2.76

2.76

1.23

AL4000-06

6300

3/4 NPT

177

39

70

70

B540

0.58

220

6.97

1.54

2.76

2.76

1.28

AL5000-06

7000

3/4 NPT

254

45

90

90

B640

1.08

AL5000-10

245

1 NPT

10.00

1.77

3.54

3.54

2.38



Top of Page                                              A Series Regulator Dimensions

Model

Flow Rate
(lpm/scfm)

Port

Gauge Port

A
(mm/in)

B

(mm/in)

C

(mm/in)

D

(mm/in)

E

(mm/in)

Panel Hole Size
(mm/in)

Bracket

Weight

(kg/lb)

Gauge

AR1000-00

100/4

10-32 (M5)

1/16 Rc

61.5

11

25

25

20

20

B120

0.08

GE-1-160-00

2.42

0.43

0.98

0.98

0.79

0.79

0.18

AR2000-01

550/19

1/8 NPT

1/8 NPT

95

17

40

40

34

34

B220

0.27

GE-1 1/2-160-01

AR2000-02

1/4 NPT

3.74

0.67

1.57

1.57

1.34

1.34

0.59

AR2500-02

2000/70

1/4 NPT

1/8 NPT

102.5

25

48

48

34

34

0.27

AR2500-03

3/8 NPT

4.04

0.99

1.89

1.89

1.34

1.34

0.59

AR3000-02

2500/88

1/4 NPT

1/8 NPT

127.5

35

53

53

40

40

B320

0.41

AR3000-03

3/8 NPT

5.02

1.38

2.09

2.09

1.57

1.57

0.90

AR4000-03

6000/210

3/8 NPT

1/4 NPT

149.5

37.5

70

70

54

54

B420

0.84

GE-2-160-02

AR4000-04

1/2 NPT

5.89

1.48

2.76

2.76

2.13

2.13

1.85

AR4000-06

6000/210

3/4 NPT

1/4 NPT

154

40.5

70

75

54

54

0.84

6.06

1.59

2.76

2.95

2.13

2.13

1.85

AR5000-06

8000/280

3/4 NPT

1/4 NPT

168

48

90

90

54

54

1.19

AR5000-10

1 NPT

6.61

1.89

3.54

3.54

2.13

2.13

2.62


Top of Page                                           A Series Filter Regulator Dimensions

Model

Flow Rate
(lpm/scfm)

Port

Gauge Port

A
(mm/in)

B

(mm/in)

C

(mm/in)

D

(mm/in)

E

(mm/in)

Panel Hole Size
(mm/in)

Bracket

Weight

(kg/lb)

Gauge

AW1000-00

90

10-32 (M5)

1/16 Rc

109.5

50.5

25

28

20

20

B120

0.09

GE-1-160-00

3

4.31

1.99

0.98

1.10

1.10

0.79

0.20

AW2000 –01

550

1/8 NPT

1/8 NPT

164.5

78

40

40

34

34

B220

0.36

GE-1 1/2-160-01

AW2000 –02

19

1/4 NPT

6.48

3.07

1.57

1.57

1.34

1.34

0.79

AW3000 –02

2000

1/4 NPT

1/8 NPT

211

92.5

53

53

40

40

B320

0.56

AW3000 –03

70

3/8 NPT

8.31

3.64

2.09

2.09

1.57

1.57

1.23

AW4000 –03

4000

3/8 NPT

1/4 NPT

262

112

70

70

54

54

B420

1.15

GE-2-160-02

AW4000 –04

140

1/2 NPT

10.31

4.41

2.76

2.76

2.13

2.13

2.53

AW4000 -06

4500

3/4 NPT

1/4 NPT

267

114

70

75

54

54

B520

1.21

160

10.51

4.49

2.76

2.95

2.13

2.13

2.66

AW5000 –06

5500

3/4 NPT

1/4 NPT

338

116

90

90

54

54

B620

1.7

AW5000 –10

195

1 NPT

13.31

4.57

3.54

3.54

2.13

2.13

3.74


                                                               A Series FRL Bracket Dimensions:

IN (MM)

L BRACKET

L SPACER BRACKET

FOR

T BRACKET

T SPACER BRACKET

FOR

A

B

C

D

E

F

G

H

R

L

B110L

Y10L

AC1000

B110T

Y10T

AC1010

20

12

4.5

3

2.5

5

8

40

2.25

27

B210L

Y20L

AC2000

B210T

Y20T

AC2010

24

15

5.5

3

30

5

10

48

2.75

33

B310L

Y30L

AC3000

B310T

Y30T

AC3010

35

16

7

4

41

7

11

70

3.5

45

B410L

Y40L

AC4000

B410T

Y40T

AC4010

40

22

9

4

50

7

14

80

4.5

50

B510L

Y50L

AC4000-06

B510T

Y50T

AC4010-06

40

22

9

4

50

7

14

80

4.5

50

B610L

Y60L

AC5000

B610T

Y60T

AC5010

50

23

12

4

69.8

10.5

15

100

6

63

in (MM)

A

B

C

D

F

G

H

J

K

L

M

N

R

t

MOUNTING SCREW

FOR

B120

40

28

17

11

37.8

25

20.5

12.3

2

6.5

4.5

2.25

2

AR/AW1000

B220

55

34

35

19

50

30

33.5

20

10

5.4

5.4

2.7

2.3

AR/AW2000-2500

B320

53

40

21.5

14

64

39

42.5

25

1.5

6.5

6.5

3.25

2.3

AR/AW3000

B420

70

54

27

18

79.2

49.2

52.5

30

2

8.5

8.5

4.25

2.3

AR/AW4000-5000

B240

40

27

33

27

18

4.5

26

3

8.4

14

5.4

2.7

2.3

M4X8

AF/AL2000

B340

53

40

39

32

22.5

4.5

35

1.5

8

19

6.5

3.25

2.3

M4X8

AF/AL3000

B440

70

54

47

38

31.5

5.5

47

2

10.5

20

8.5

4.25

2.3

M5X10

AF/AL4000-04

B540

70

54

47

38

31.5

5.5

47

2

10.5

20

8.5

4.25

2.3

M5X10

AF/AL4000-06

B640

90

66

64

52

43

6.5

60

2

13

29

11

5.5

3.2

M6X10

AF/AL5000

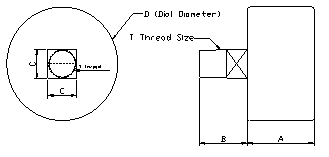

PRESSURE GAUGE PART NO.

For

(in /MM)

T Port Size

A

B

C

D

GE-1-160-00

AR1000

R1/16 (PT)

0.6/15.3

0.4/10

0.47/12

1.0/25.4

GE-1 1/2-160-01

AR2000-3000

1/8 NPT

0.93/25.8

0.67/17.0

0.43/11

1.6/42

GE-2-160-02

AR4000-5000

1/4 NPT

0.97/24.8

0.77/19.7

0.54/14

2.1/52.4


 Top of Page


 Top of Page


 Top of Page


 Top of Page

Home Terms of Use Terms of Sale Careers Contact Us Click Here to Order

Sizto Tech Corporation © 2001-2015.  All rights reserved.  Last modified: March 23, 2015.  Information contained herein may be changed without prior notification. Instagram STC Valves YouTube Channel
