AB Series Aluminum Body Filter-Regulator-Lubricators (FRL)-Specifications

        Filter-Regulator-Lubricators

Part No.

Description



Port Size (NPT)

Flow Rate (SCFM)

Filtration
(Micron)

Max. Pressure (PSI)

Operating Temp °F

AF2000

Filter



1/4

16

5-40

150

40-140

* Price Includes  Pressure Gauge & Mounting Bracket.
These FRL components are of Modular design with joiner clamps and allow you to easily connect and disconnect FRL components for simple installation and maintenance.

Material of Constructions



Metal Body

Aluminum alloy (Epoxy Coated)

Plastic Bowl

Polycarbonate

Metal Bowl

Aluminum alloy
Body Shield

Painted Steel

Filter Sintered Brass (25µ) standard
or Plastic (5µ)

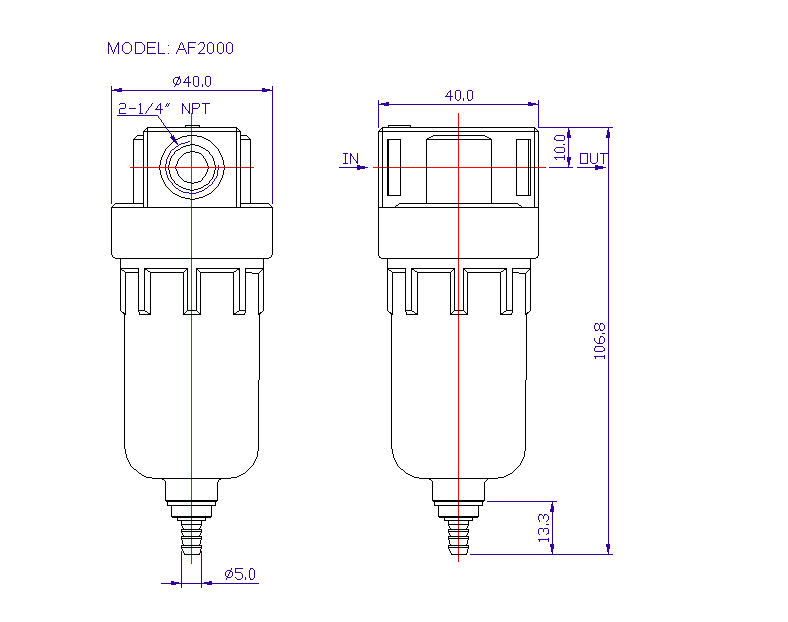

DIMENSIONS:  AF2000  (UNIT=MM)
