Sanitary Valves

Model: V3C

Model: V3C SPECIFICATIONS

Sanitary Stainless Steel Ball Valve: These valves are made with a precision machined Teflon seat for use in Sanitary applications. They utilize a three piece design and have four bolts that permit quick and easy access to service the valve without disrupting the pipe line connections.

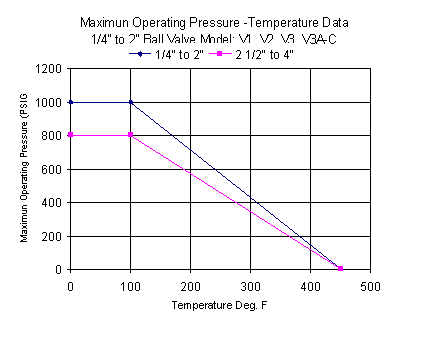

Maximum Operating Pressure:
1/2" to 2" 1000 PSI @ 100ºF WOG*
2 1/2" to 4" 800 PSI @ 100ºF WOG*

Temperature Range: -60 to 450ºF*

Full Port

End Connections: Clamp End

Mounting Options: Padlocking device and actuator mounting bracket

MAIN PARTS AND MATERIALS
NO	PART NAME	MATERIAL	QTY
1	SEAT	PTFE	2
2	BALL	SS316	1
3	JOINT GASKET	PTFE	1
4	CAP	SS316	1
5	BODY, BODY CONNECTOR	SS316/CF8M	1, 2
6	STEM	SS316	1
7	THRUST WASHER	PTFE	1
8	STEM PACKING	PTFE	1
9	GLAND NUT	SS304	1
10	STEM WASHER	SS304	1
11	STEM NUT	SS304	1
12	HANDLE COVER	PLASTIC	1
13	HANDLE	SS304	1
14	BODY CONNECTOR BOLT	SS304	4
15	BODY CONNECTOR NUT & WASHER	SS304	4

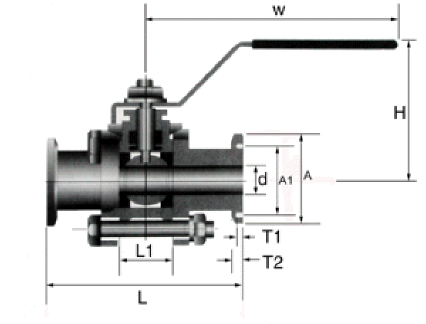

DIMENSIONS (mm)
SIZE	PORT D	L	A	A1	H	T1	T2	W
1/2"	9.6	75	25.0	20.24	64	--	3.63	125
3/4"	15.9	90	25.0	20.24	67	--	3.63	125
1"	22.2	100	50.4	43.60	83	2.85	4.75	140
11/4"	28.5	110	50.4	43.60	89	2.85	4.75	140
11/2"	34.9	125	50.4	43.60	100	2.85	--	200
2"	47.5	150	63.9	56.30	108	2.85	--	200
2 1/2"	60.2	190	77.4	70.60	150	2.85	--	250
3"	72.9	220	90.0	83.30	161	2.85	--	250
4"	97.4	270	118.9	110.30	180	2.85	--	250
