Model |

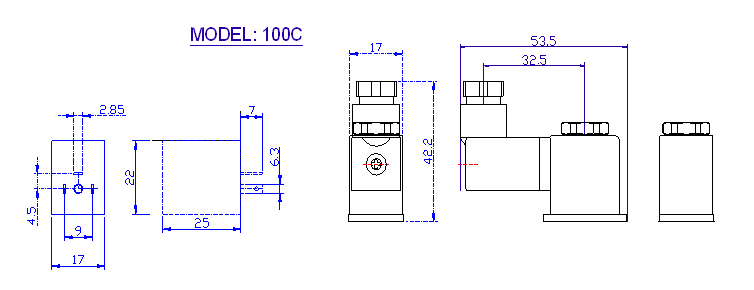

100C |

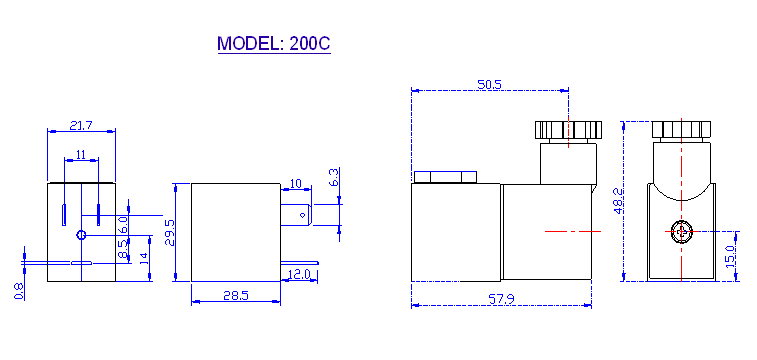

200C |

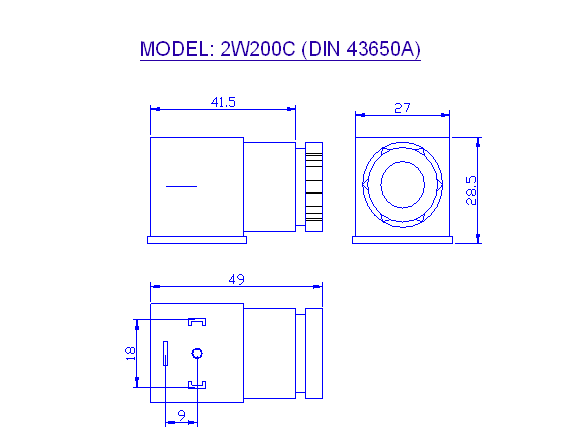

2W200C |
2WO250C |
2W350C |
|
Coil Insulation
& Protection Class |
F Class,
IP65 |
F Class, IP65
|
H
Class, IP65
|
H
Class, IP65
|
H
Class, IP65
|
|
Coil Duty Cycle |
100% ED |
100% ED |
100% ED |
100% ED |
100% ED |
|

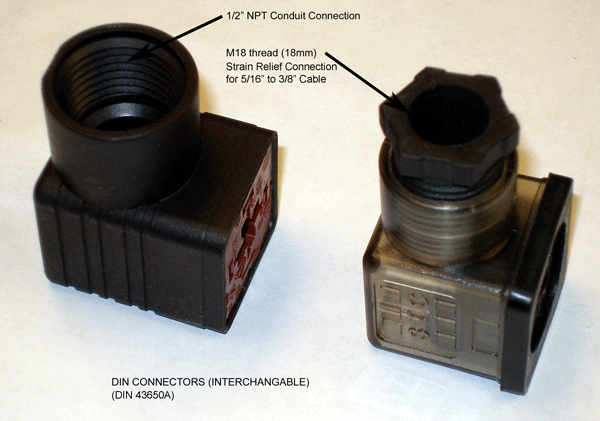

DIN Electrical
Connection |
DIN 43650C
(with LED indicator)
Strain Relief Connection use 6mm to 1/4" cable)
Option: 1/2" Female NPT
Conduit Connection |
DIN 43650B
(PG 9)
(with LED indicator)
Strain Relief Connection use 6mm to 1/4" cable)
PG 9 (STANDARD)
Option:
1/2" Female NPT
Conduit Connection |
DIN 43650A
(with LED indicator)
Strain Relief
Connection use 6mm to 8mm-5/16" cable)
PG 11
(STANDARD)
Option:
1/2" Female NPT
Conduit Connection |
DIN
43650A (PG11)
(with LED indicator)
Strain Relief
Connection use 6mm to 8mm-5/16" cable)
PG 11 (STANDARD)
Option:
1/2" Female NPT
Conduit Connection |
DIN 43650A
(PG11)
(with LED indicator)
Strain Relief
Connection use 6mm to 8mm-5/16" cable)
PG 11 (STANDARD)
Option:
1/2" Female NPT
Conduit Connection |
|

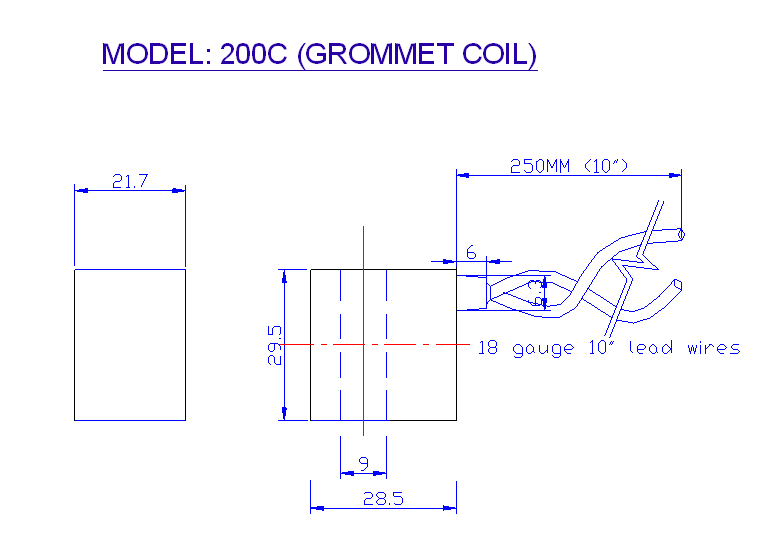

Grommet Electrical
Connection |
G = Grommet
(12” Lead Wire) |
G = Grommet
(12” Lead Wire) |
N/A |
N/A |
N/A |
|
Power Consumption |
2.5 Watt (Holding),
(Inrush
160% for AC Power Supply) |
3 to 6.5 Watt
(Holding),
(Inrush
160% for AC Power Supply) |
12 to 20 Watt
(Holding),
(Inrush
160% for AC Power Supply) |
25 to 40 Watt
(Holding),
(Inrush
160% for AC Power Supply) |
25 to 40 Watt
(Holding),
(Inrush
160% for AC Power Supply) |
|
Certification |
CE
Certification |
CE Certification
Options:
UL, CSA;
FM (Explosion Proof) |
CE
Certification
Options:
ATEX (Explosion Proof) |
CE
Certification |
CE
Certification |
