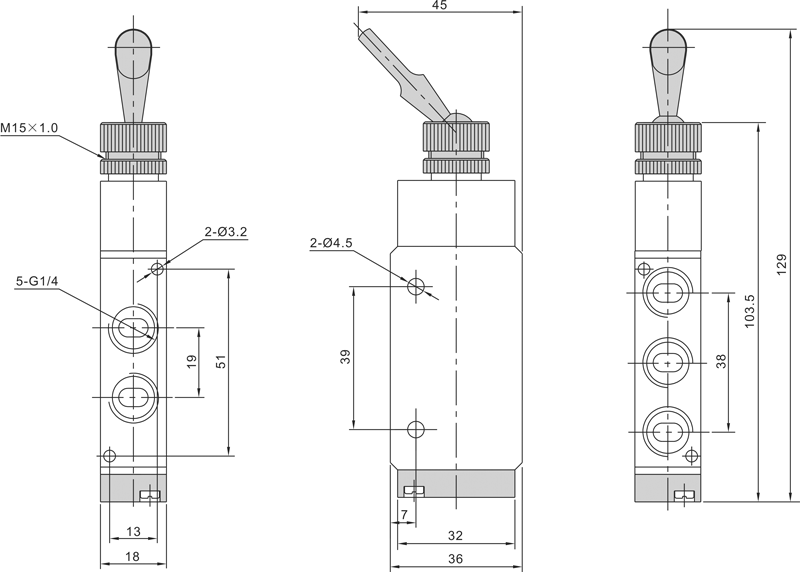

Hand Operated Air Valve Dimensions (UNIT=MM)

	MPV522
Working Medium	Air(to be filtered by 40μ filter element)
Port size	1/4" NPT
Effective Cross Section Area	18mm²(CV=1.00)
Working Pressure	0~0.8MPa
Temperature	0~60^oC
Panel Hole	15mm

TOGGLE AIR VALVE DIMENSIONS
