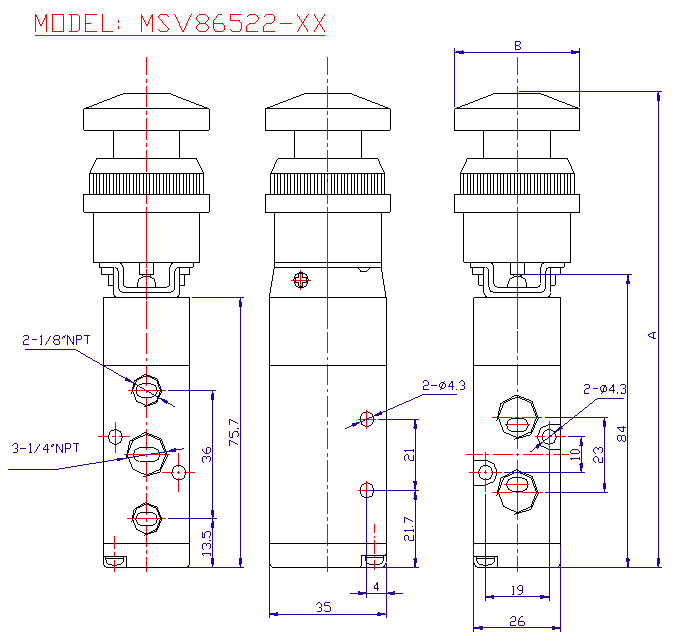

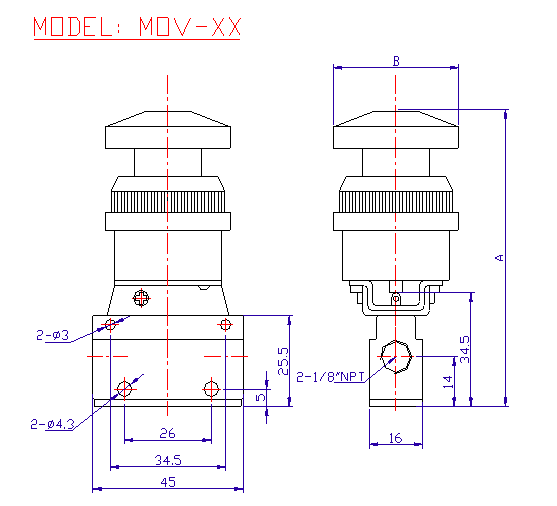

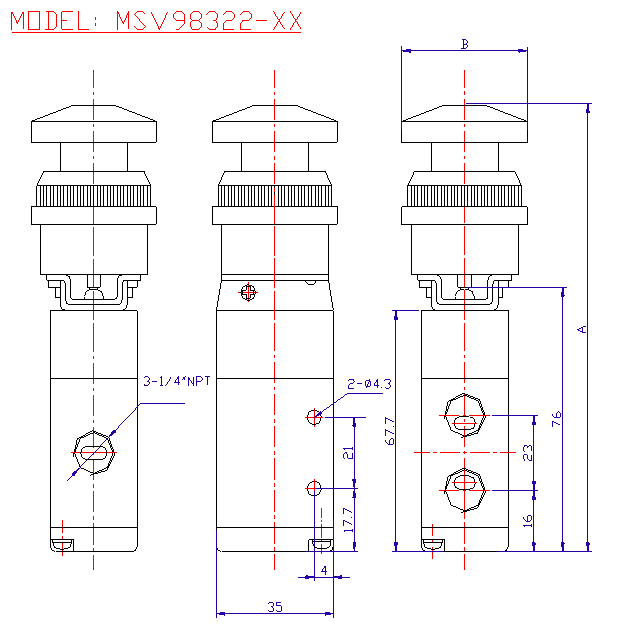

Air Valve Dimensions  (UNIT=MM)

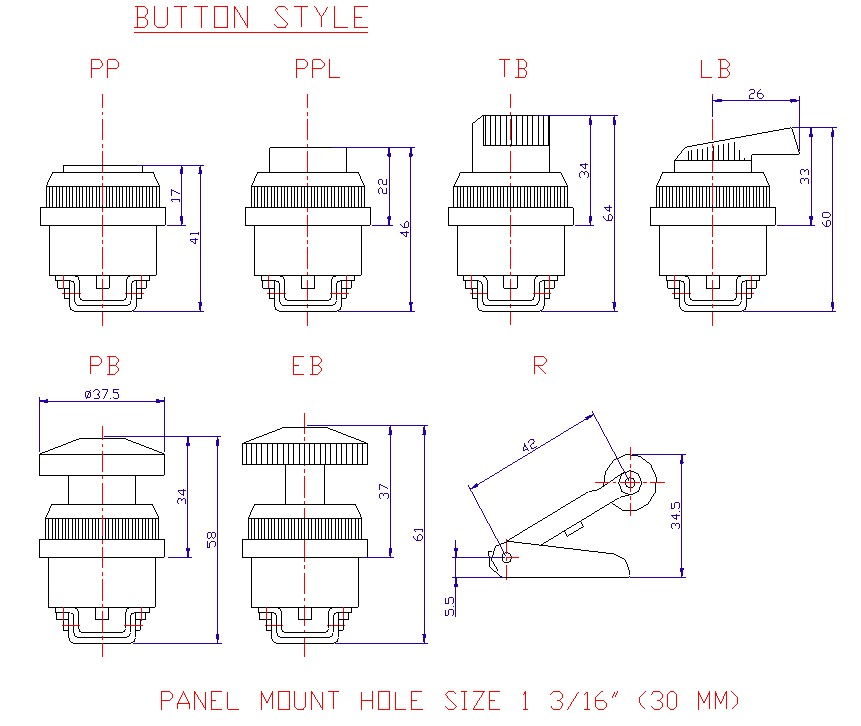

To obtain Dimension A, find the height of Operator Switch that is of interest on bottom of page and
add to the height of the valve.
