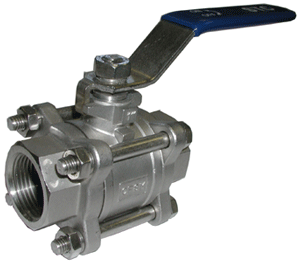

Stainless
Steel Ball Valve
|
Model: V3
|
|
Model:
V3 SPECIFICATIONS
|
|
Working
Pressure:1/2"-2" 1000PSI WOG
|
|
2 1/2"-3" 800PSI WOG
|
| Temperature
Range:-60 to 450ºF
|
|
Connection: NPT
|
|
Full Port
|
|
Options: Padlocking device and actuator
mounting bracket
|
|
Material
Options: 316 stainless steel
|
|
DESIGN STANDARD ASME: B16.34, GB/T12237
TEST & INSPECTION: API1598, JB/T9092
|
|
|
|
MAIN PARTS AND MATERIALS
|
NO
|
PART NAME
|
MATERIAL
|
QTY
|
|
1
|
SEAT |
PTFE |
2
|
|
2
|
BALL |
SS316/CF8M |
1
|
|
3
|
JOINT
GASKET |
PTFE |
1
|
|
4
|
CAP |
SS316 |
1
|
|
5
|
BODY |
SS316 |
1
|
|
6
|
STEM |
SS316 |
1
|
|
7
|
THRUST
WASHER |
PTFE |
1
|
|
8
|
STEM
PACKING |
PTFE |
1
|
|
9
|
GLAND
NUT |
SS304 |
1
|
|
10
|
STEM
WASHER |
SS304 |
1
|
|
11
|
STEM
NUT |
SS304 |
1
|
|
12
|
HANDLE
COVER |
PLASTIC |
1
|
|
13
|
HANDLE |
SS304 |
1
|
|
|

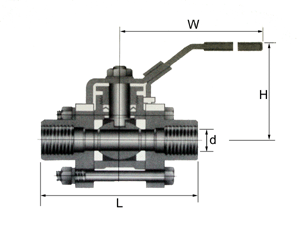

DIMENSIONS (mm)
|
|
SIZE
|
1/4"
|
3/8"
|
1/2"
|
3/4"
|
1"
|
11/4"
|
11/2"
|
2"
|
21/2"
|
3"
|
4"
|
|
d
(Norminal size) |
in
|
0.25
|
0.38
|
0.5
|
0.75
|
1
|
1.25
|
1.5
|
2
|
2 1/2
|
3
|
4
|
|
H
|
mm
|
57
|
57
|
68
|
70
|
80
|
84
|
93
|
100
|
142
|
155
|
172
|
|
in
|
2.24
|
2.24
|
2.68
|
2.76
|
3.15
|
3.31
|
3.66
|
3.94
|
5.59
|
6.10
|
6.77
|
|
W
|
mm
|
96
|
96
|
124
|
124
|
142
|
142
|
202
|
202
|
250
|
250
|
300
|
|
in
|
3.78
|
3.78
|
4.88
|
4.88
|
5.99
|
5.99
|
7.95
|
7.95
|
9.84
|
9.84
|
11.81
|
|
L
|
mm
|
68
|
68
|
72
|
83
|
90
|
112
|
120
|
147
|
174
|
193
|
216
|
|
in
|
2.56
|
2.56
|
2.84
|
3.35
|
3.62
|
4.33
|
4.48
|
5.59
|
6.85
|
7.60
|
8.50
|
|
