Solenoid Valve Specifications and Dimensions: 2SO & 2WO160-500 Series

Valve Model

2SO160-3/8 2SO160-1/2 2SO200-3/4 2SO250-1

2SO350-1 1/4

2SO400-1 1/2

2SO500-2

2WO160-3/8 2WO160-1/2 2WO200-3/4 2WO250-1

2WO350-1 1/4

2WO400-1 1/2

2WO500-2

Valve Type

2 Way Normally Open (NO)

Action

Direct Lift Diaphragm

Cv (Orifice)

29 (40mm)

Operating Pressure

 0  to 90 PSI (110 & 220 AC Coil) , 0 to 80 (12 & 24 DC, 24VAC coil)

Operating Temperature

14 to 176 °F (-10 TO 80 °C);  5 to 248 °F (-15 TO 120 °C)  (with Viton Seal)

Port Size (NPT)

3/8 1/2 3/4 1

1 1/4

1 1/2

2

Body Materials

2S Series: Stainless Steel;     2W Series Brass

Seal Materials:

NBR (Option: Viton)

Coil Protection Insulation Class

H Class IP65

Coil Duty

100% ED

Coil Power

30W

40W

Electrical Connections

DIN

Service

Air, Gas, Liquid, Vacuum

ALL Standard valves are supplied with CONTINUOUS DUTY COILS of the proper class of insulation for the service indicated on the valve. The coil temperature may become hot after being energized for extended periods, but it is normal. Smoke or burning odor indicates excessive coil temperature and should disconnect the power to the coil immediately.

VOLTAGES: Standard: 12-24V DC and 24-110-220-230V/50-60 Hz AC. Voltage tolerances: +10% –5% for DC, +10%-10% for AC; .

SERVICE LIFE: The service life of the solenoid valve depends on the operating conditions such as pressure, temperature, type of medium and the voltage.

Electrical Coil Connections

For DIN Coil

To connect DIN coil:
1. Remove the Philip screw from the plastic housing and unplug it from the DIN coil.
2. From the screw opening, push the terminal block out from the plastic housing.
3. Note the 1, 2 and ground markings on underside of DIN enclosure.
4. For DC DIN Coil, Connect 1 to Positive, 2 to Negative.
5. For AC DIN Coil, connect 1 to HOT wire, 2 to Neutral wire, and if required connect ground to ground wire.

For Grommet Coil

To connect Grommet coil:
1.  For DC Coil, connect one of the two wires to Positive, and the other wire to Negative.
2. For AC Coil, connect one of the two wires to HOT wire, and the other wire to neutral wire.

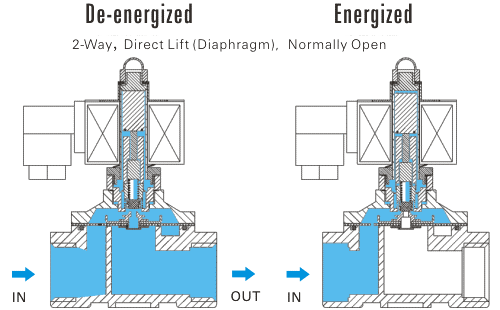

2W Series 2/2 Direct Lift Diaphragm Normally Open Solenoid Valve:

To close: when the valve is energized, it attracts the plunger. Then the plunger covers the main orifice. The system pressure builds up on the top of the diaphragm/piston through the bleed orifice, forcing the diaphragm/piston down until it covers the main orifice and stops media flow through the valve. When the system pressure is 0 PSI, the valve also can be operated.
To open: when the valve is de-energized, it releases its hold on the plunger. The plunger uncovers the pilot orifice causing system pressure holding the diaphragm/piston closed to drop. As system pressure on the top of the diaphragm/piston is reduced, full system pressure on the opposite side of the diaphragm/piston acts to lift the diaphragm/piston away from the main orifice, which allows the full media flow through the valve. When the system pressure is 0 PSI, the valve also can be operated.

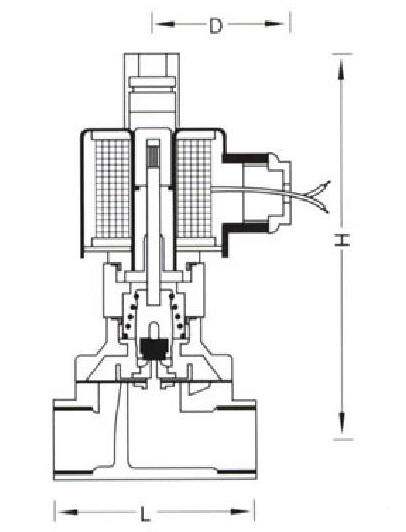

 Normally Open Solenoid Valve

MODEL
Stainless Steel

MODEL
Brass

PORT NPT

L (MM)

H (MM)

Cv

2SO160-1/4

2WO160-1/4

1/4"

40.5

75



2SO160-3/8

2WO160-3/8

3/8"

69

117

4.8

2SO160-1/2

2WO160-1/2

1/2"

69

117

4.8

2SO200-3/4

2WO200-3/4

3/4"

73

123.5

7.6

2SO250-1

2WO250-1

1"

99

134.5

12

2SO350-1 1/4

2WO350-1 1/4

1 1/4"

123

195

24

2SO400-1 1/2

2WO400-1 1/2

1 1/2"

123

195

29

2SO400-2

2WO500-2

2"

168

227

48
